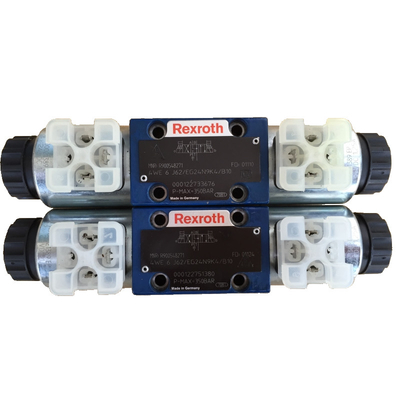

    Rexroth Direction Valve 4WE6J62/EG24N9K4/B10 A High-Performance Valve For Hydraulic Systems

    Ask Lasest Price
    Brand Name : Rexroth
    Model Number : 4WE6J62/EG24N9K4/B10
    Certification : cc
    Price : RMB/1000-10000/PC
    Payment Terms : T/T
    Supply Ability : 10PCS/days
    Delivery Time : 3days
    • Product Details
    • Company Profile

    Rexroth Direction Valve 4WE6J62/EG24N9K4/B10 A High-Performance Valve For Hydraulic Systems

    Product Description


    The Bosch Rexroth 4WE6J6X/EG24N9K4/B10 (R900548271) is a high-performance industrial hydraulic valve designed for reliable operation and precise control of oil flow direction in hydraulic systems. This direct-actuated spool valve features the J spool symbol and is capable of handling a maximum pressure with a maximum flow rate for both DC (l/min) and AC (l/min). It offers two switching positions, operated by high-power solenoids, which can be manually actuated as an auxiliary option. This model comes with a connector pole PE electrical connection according to EN standards and allows for subplate mounting with connection diagrams conforming to NFPA T3.5.1 R2 D03 Size 6/CETOP 3 and ISO standards. The supply voltage required for this valve is 24 VDC, ensuring compatibility with a range of industrial applications.


    Equipped with NBR seals, the 4WE6J6X/EG24N9K4/B10 valve is suitable for use with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC types. The unit's robust construction includes features such as porting patterns according to ISO standard with or without locating holes, an optional rotatable high-power solenoid, single or central electric connections, and optional spool position monitoring. For safety compliance, the valve meets CE conformity requirements according to the Low-Voltage Directive EU for electrical voltages greater than VAC or VDC. Additionally, it offers solenoid coil approval with UR marking according to UL standard edition and CSA C22.2 No. approval as optional features. The Bosch Rexroth 4WE6J6X/EG24N9K4/B10 is designed for three or four-way configurations making it versatile for various applications where consistent performance and durability are essential.


    BrandRexroth
    Model4WE6J62/EG24N9K4/B10
    Spool symbolSymbol J
    Max. pressure350
    Productgroup ID9,10,11,12,13,14
    Number of ports4
    Type of actuationwith solenoid actuation
    Size6
    Max. flow80
    Type of connectionSubplate mounting


    FAQ


    Q1: Wonder if you accept small orders?
    A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.


    Q2: Can you send products to my country?
    A2: Sure, we can. If you do not have your own ship forwarder, we can help you.


    Q3: What's your payment terms ?
    A3: By T/T,LC AT SIGHT,100% full payment.


    Q4: How long is your production lead time?
    A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.


    Q5: When can I get the quotation ?
    A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
