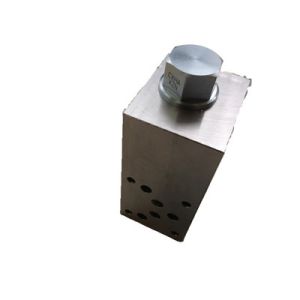

    SUN Cartridge Valve CXHA-XZN For Performance And Low Leakage High Pressure And Corrosion Resistant

    Ask Lasest Price
    Brand Name : SUN
    Model Number : CXHA-XZN
    Certification : cc
    Price : RMB/1000-10000/PC
    Payment Terms : T/T
    Supply Ability : 10PCS/days
    Delivery Time : 3days
    • Product Details
    • Company Profile

    SUN Cartridge Valve CXHA-XZN For Performance And Low Leakage High Pressure And Corrosion Resistant

    Product Description


    Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.

    Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
    Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).


    Will accept 5000 psi (350 bar) at ports 1 and 2.
    Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
    Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
    Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.


    BrandSUN
    ModelCXHA-XZN
    Mounting StyleThreaded or slip-in
    Pilot Pressure Range100-300 PSI
    Maximum Pressure5000 PSI
    Port TypeNPTF
    CavityT-11A
    Valve TypeCartridge Valve
    Solenoid Tube Diameter.75 in.
    Dimensions1.5 x 1.5 x 2.5 inches
